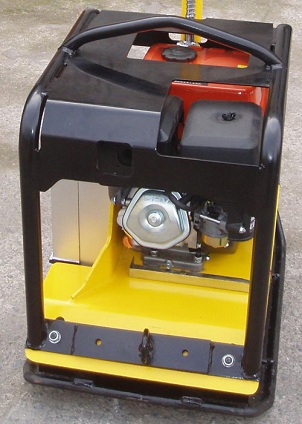

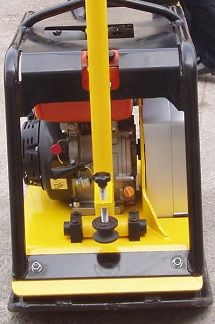

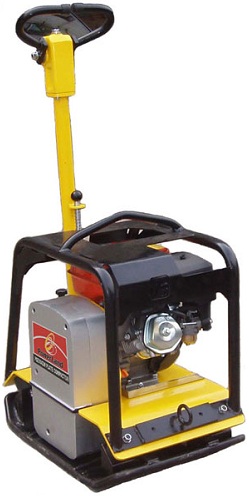

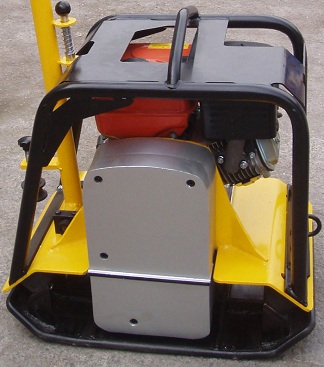

High Quality 9.0 HP Gas Power Two Way Reversible Vibratory Plate Compactor
![](/v/vspfiles/assets/images/9%20hp%20gas%20power%20vibratory%20plate%20compactor.jpg) This High Quality 9.0 HP Gas Power Two Way Reversible Vibratory Plate Compactor is ideal
for compaction of interlocking paving stones, trenches, landscaping and
maintenance. it has plates with a durable, integrated wheel set that
provides for maximum built-in mobility.
ORDER ONLINE NOW OR CALL 1-866-606-3991![](/v/vspfiles/assets/images/9%20hp%20gas%20power%20vibratory%20plate%20compactor%20a.jpg) Features:
- Specially designed shockmount system offers a virtually vibration-free guide handle for increased operator comfort and reduced operator fatigue.
- Heavy-duty frame features a central lifting point for easy on/off loading and placement of plate into trenches.
ORDER ONLINE NOW OR CALL 1-866-606-3991SpecificationsCompactor:
- Effective Base Area: 28 X 20 Inch ( 700 X 500 mm)
- Vibration frequency: 5400
- Travel Speed: 66 - 82 ft/min ( 20 - 25 m/min)
- Climb ability: 0-20 degree
- Impact Force: 7000 lbf ( 30 KN)
- Compacted area: Max. 6,889.9 ft2 (640 m2)
Engine:
- Engine Model: Powerland PD168F-I / 9.0 HP
- Dispacement: 196 ml
- Max. Power: 9.0 HP / 3500 rpm (6.6 kw)
- Engine Type: OHV/25 degree tilt single cylinder, forced air colling, 4 stroke
- Fuel tank capacity: 1.7 US Gallons (6.5 L)
- Start system: Recoil
ORDER ONLINE NOW OR CALL 1-866-606-3991
Packing:
- Package dimension: 34.6 X 22.8 X 35 Inch
- Net weight / gross weight: 348 / 370 lbs
![](/v/vspfiles/assets/images/9%20hp%20gas%20power%20vibratory%20plate%20compactor%20d.jpg)
ORDER ONLINE NOW OR CALL 1-866-606-3991
![](/v/vspfiles/assets/images/9%20hp%20gas%20power%20vibratory%20plate%20compactor%20e.jpg)
|
|
